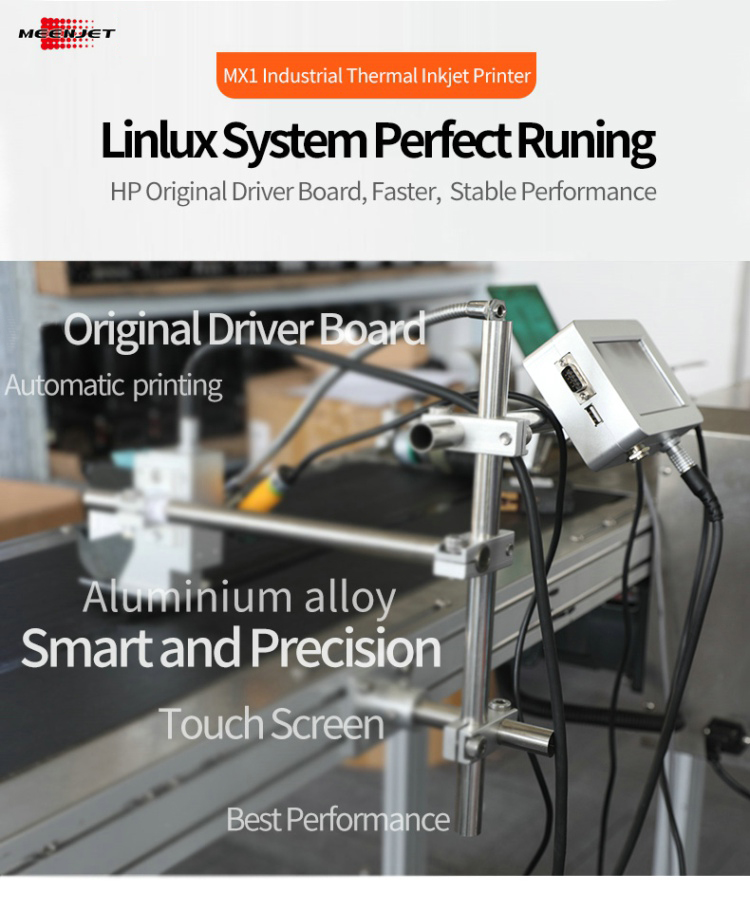

MX1 Variable Data Ink Jet System is a new kind of machine with 4.5 inch high definition display screen and high precision capacitive touch sreen. It can support bluetooth 4.0/ Wi-Fi connection, system firmware can be upgraded remotely. It can print deformable bar code/ QR code/ text.
MX1 online inkjet printing machine embedded linux operation system. Support using smartphone to control device via bluetooth connection. Upgrade system firmware remotely via Wi-Fi connection. The inkjet coding machine can print online automatically with a sensor. Support 180 degrees direction printing.
Product parameter
| Model | MX1 |
| Shape features | Aluminium |
| Weight | 1.5kg |
| Dimension | 128*90*45mm |
| CPU | Quard core 1.4 GHz |
| Definition | 600PDI |
| Spray nozzle | Thermal foaming inkjet 2.5 |
| Printing direction | Adjustable with 360 degree, meet all kinds of production needs |
| Printing line | 1-8 lines (adjustable) |
| Printing height | 1.2mm-12.7mm |
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
| Printing content | Chinese, English, number, date, time, QR code, bar code, picture |
| Application | Board, carton, stone, pipe, cable, metal, plastic, electronics, automotive parts |
| Printing length | 2000characters for each message, no limitation on length |
| Printing speed | 70m/min |
| Ink type | Quick-dry environmental ink, water-based ink and oily ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml(usually can print 800,000 characters) |
| Interface | USB, RS232, DB15, Photoelectric interface, Bluetooth 4.0, Wi-Fi |
| Voltage | DC16.8V |
| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) |
| Working condition | Temperature:0 - 45 degree; Humidity: 10% - 80% |
Main Advantages
Embedded linux operation system. Support using smartphone to control device via bluetooth connection. Upgrade system firmware remotely via Wi-Fi connection.
Optimized structural design, small size, convenient for product line.
Use original HP ink together, apply to various fields.

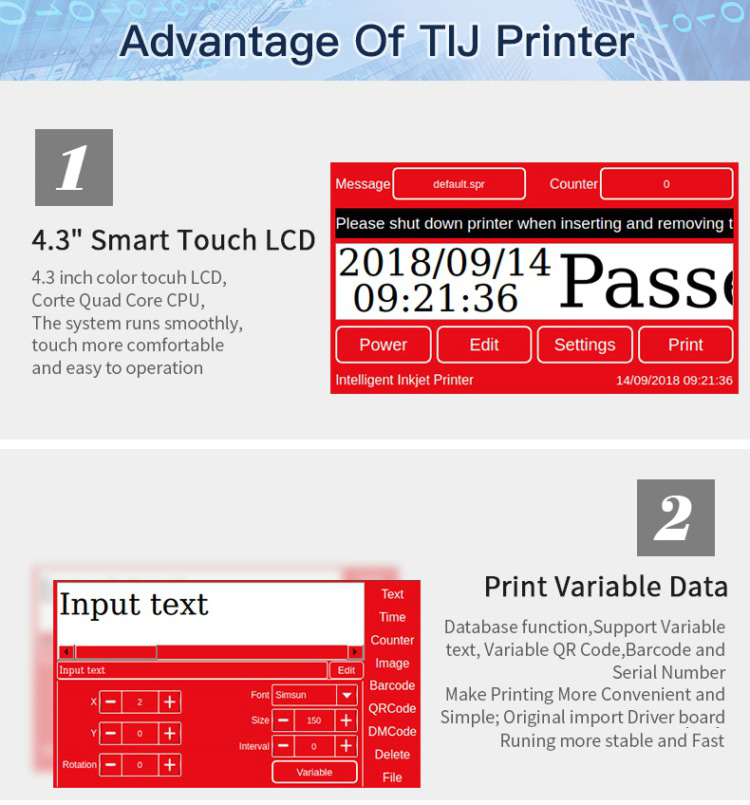

All around high quality printing. Directly edit printing content and modify device parameters, no need to use a computer.
Integrated with HP original imported inkjet engine. High quality but low cost.
One year free warranty and lifetime maintenacne. Team meenjet provides our customers 7*24 technical support.

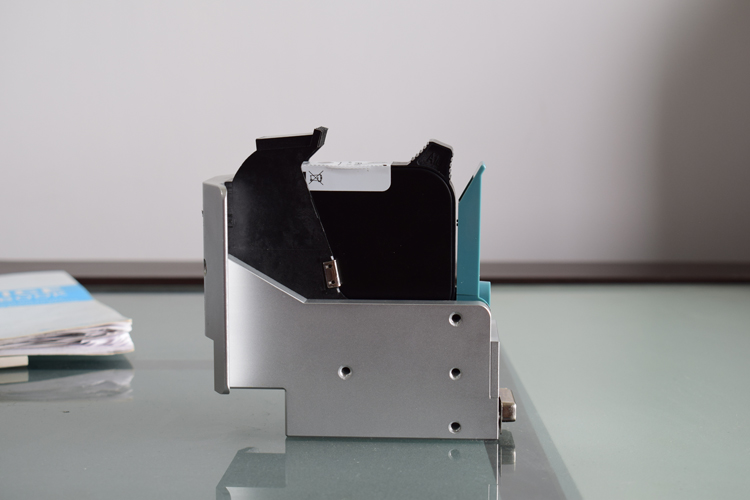

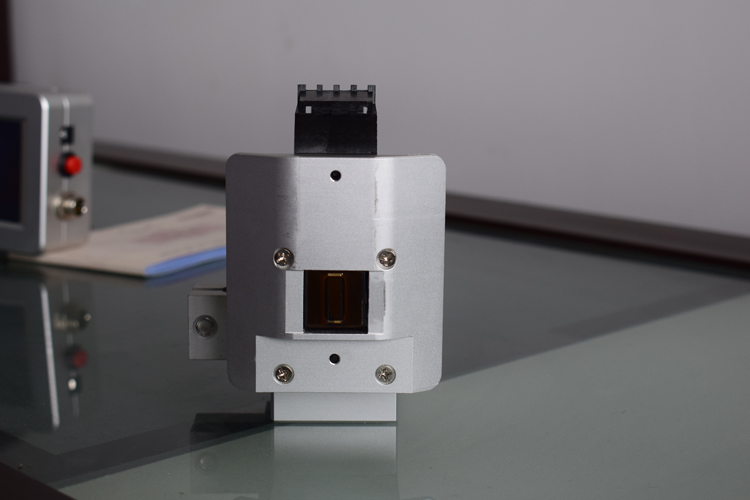

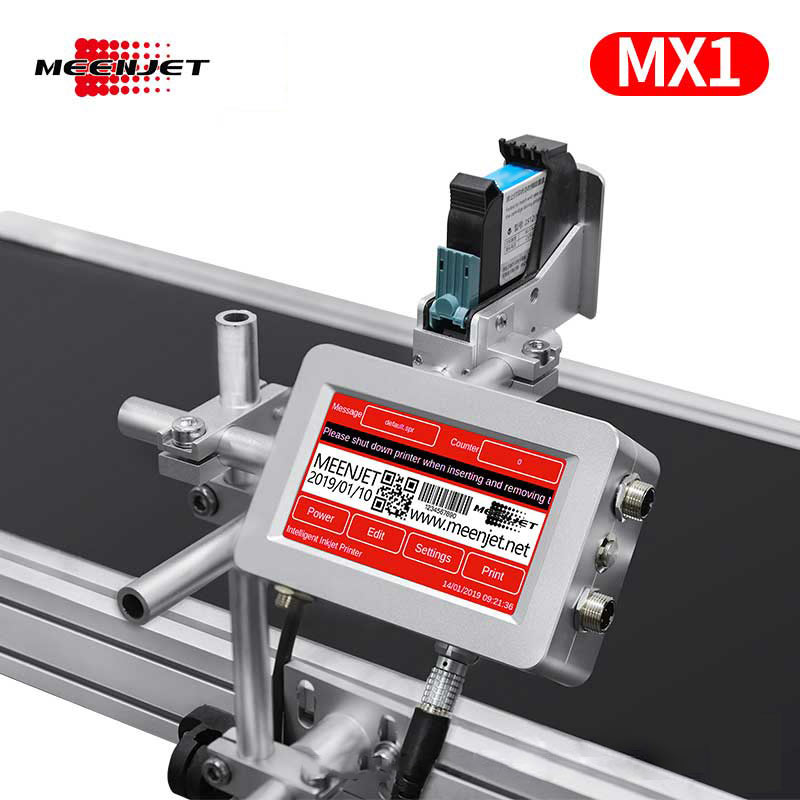

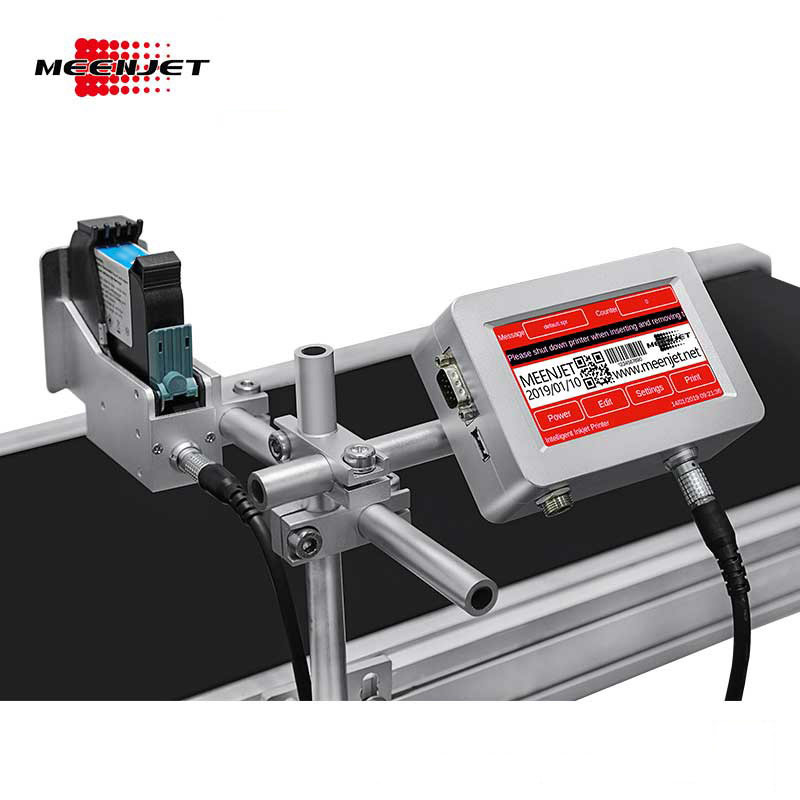

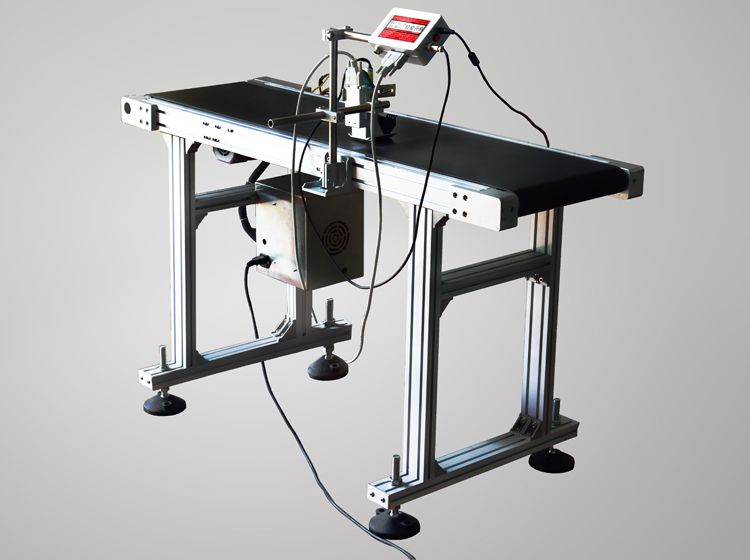

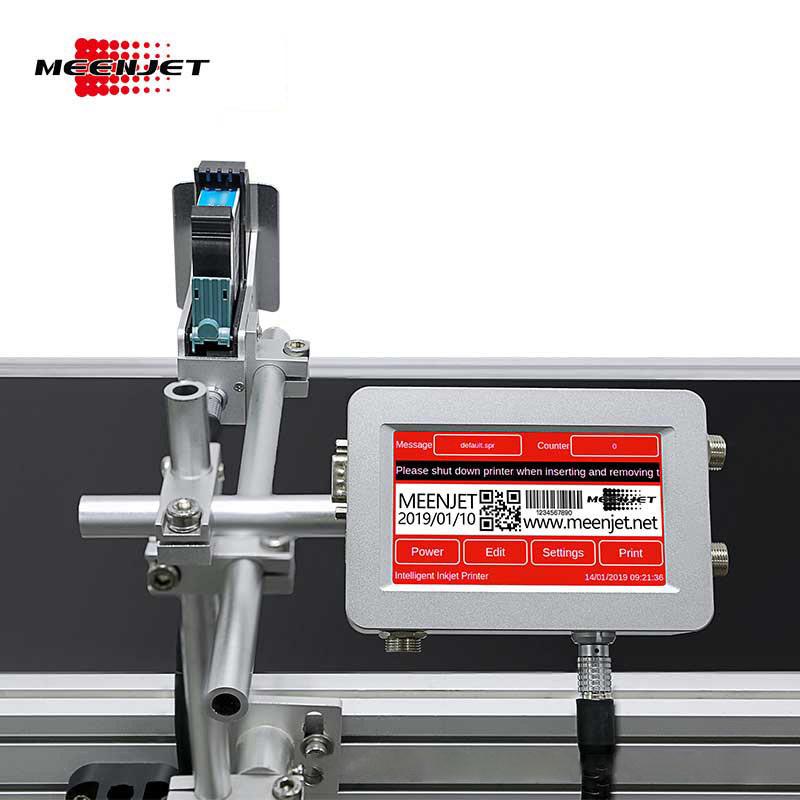

Product Show
Printing Effect
Packaging List
| MX1 Packing List | |||
| Machine | Simple Stand Bracket | ||
| Control Panel | 1pc | Diameter 16 mm steel pipe * 4 | 30cm * 3pcs + 15cm * 1pc |
| Spray nozzle | 1pc | Bearing support * 3pcs, Nozzle fixture * 2pcs, Conveyor connector * 1pc | |
| Adapter | 1pc | Sensor stand | 1pc |
| AC power cord | 1pc | M8 Hexagon screw | 12pcs |
| DB 15 cord | 1pc | M4 round head screw | 8pcs |
| sensor | 1pc | M8 Hexagon spanner | 1pc |
| USB disk and touch pen | 1pc | Normally paper box packing, support customized packing | |
