M3S handheld inkjet printer is a new product manufactured by meenjet, it is some like M3, but the print engine and main board and core board is updated, and the printer's battery could be removed. The expiry date printing machine could print by hand or online, printing materials include board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
Meenjet M3S handheld inkjet printers use the world's leading original imported inkjet technology, designed with replaceable and plug-and-play cartridges. It has 300DPI high-definition display screen, the best printing quality, can print date, time frequency, and serial number, etc. (chang as time) bar codes, QR codes. It is good quality inkjet printer. It is some like M3, but the print engine and main board and core board is updated, and the printer's battery could be removed.

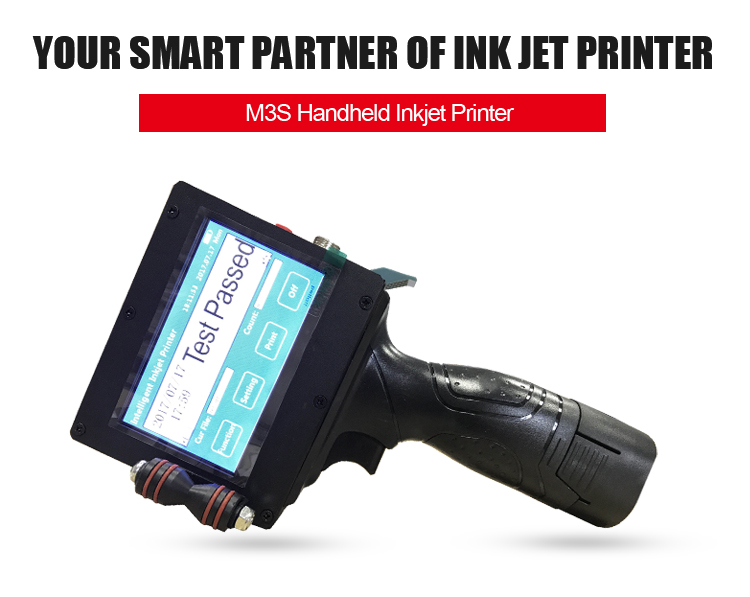

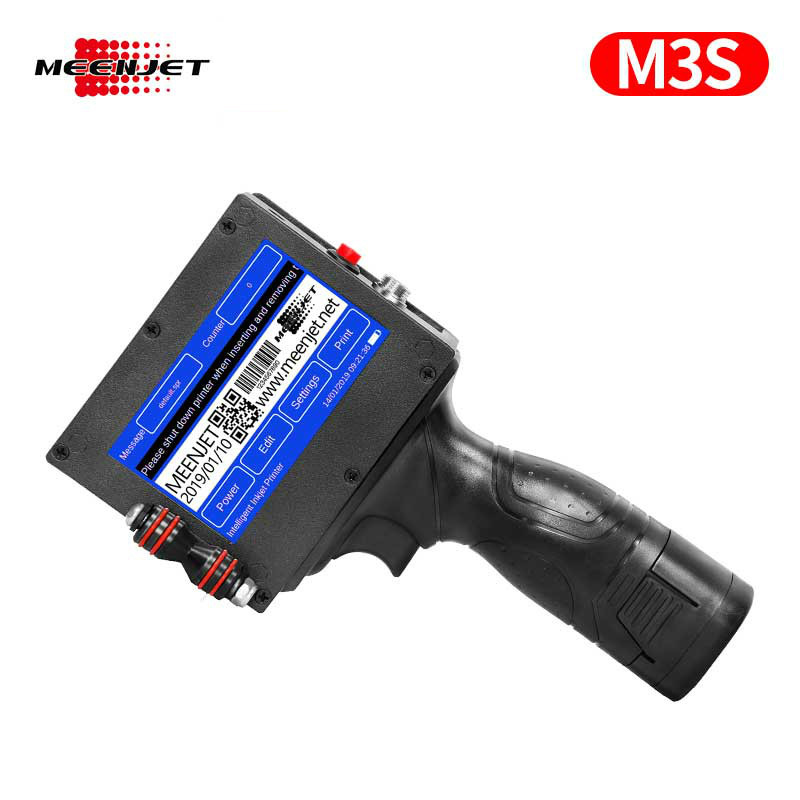

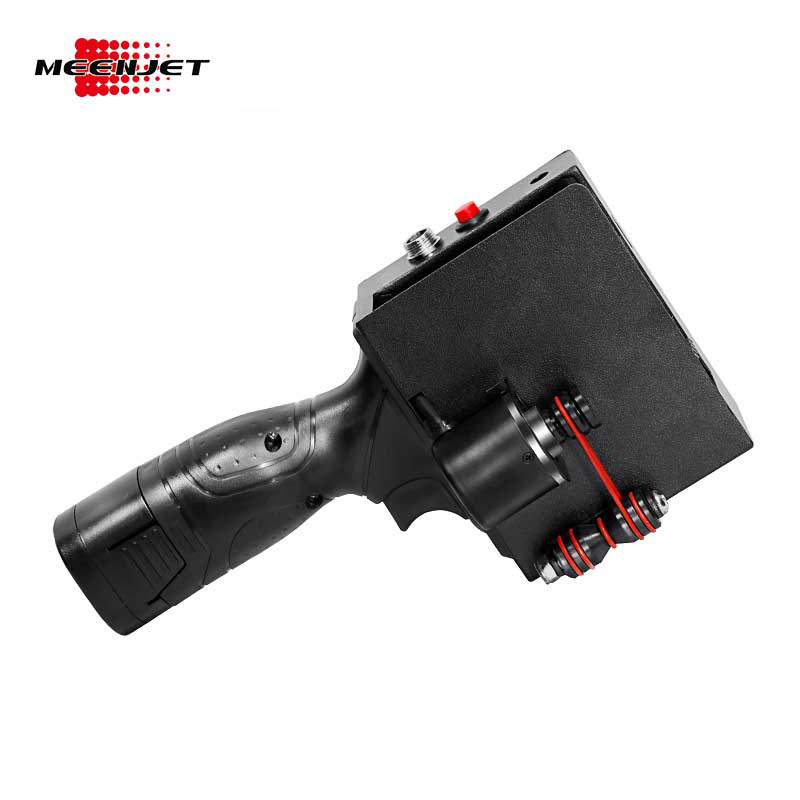

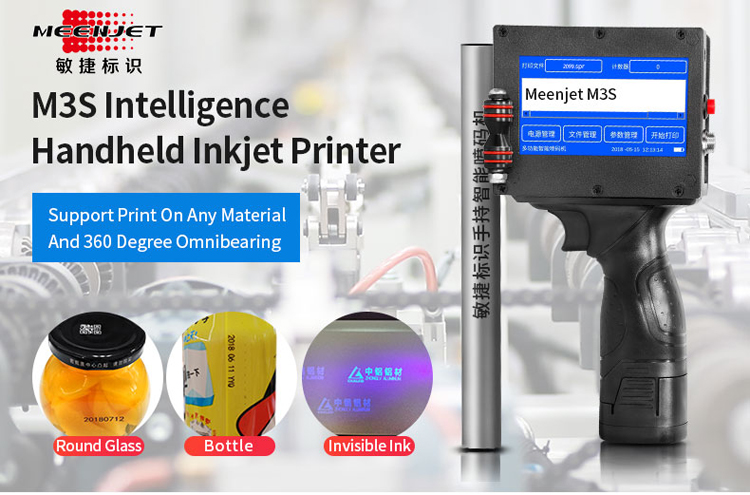

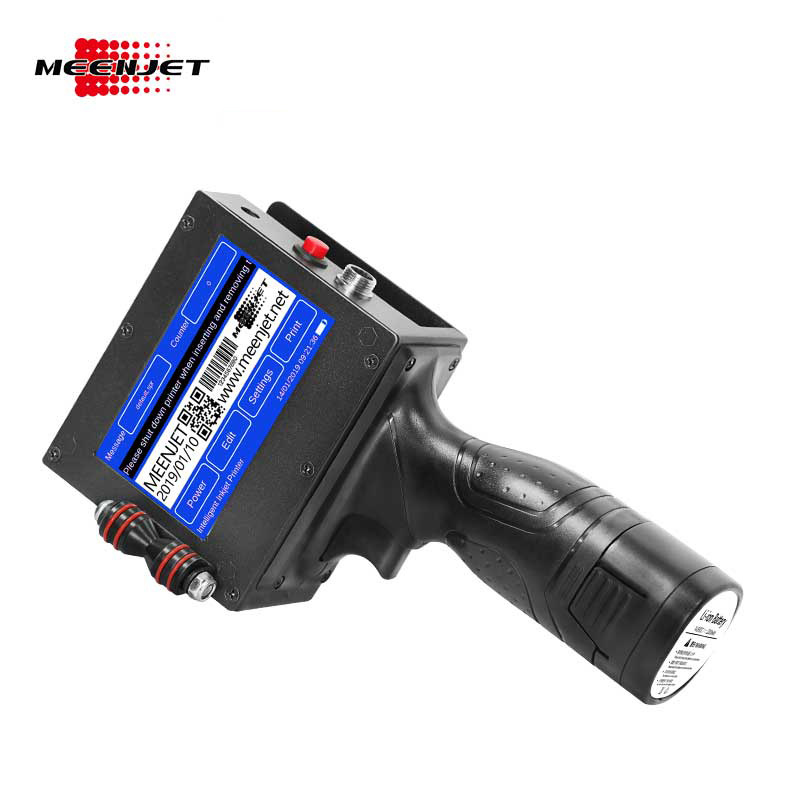

Main View of M3s Handheld Inkjet Printer
Main Features
| Shape features | stainless steel casing/black aluminum shell and color touch screen |
| Dimension | 130*128*200mm |
| Net weight | 1.18kg |
| Printing direction | adjusted within 360 degree, meet all kinds of production needs |
| Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English |
| Printing pictures | all kinds of logo, pictures can be uploaded through USB disk |
| Printing accuracy | 300DPI |
| Printing line | 1-8 lines (adjustable) |
| Printing height | 1.2mm-12.7mm |
| Print code | bar code, QR Code |
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
| Print serial number | 1~9 |
| Automatic print | date, time, batch number shift and serial number, etc |
| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) |
| Message length | 2000characters for each message, no limitation on length |
| Printing speed | 70m/min |

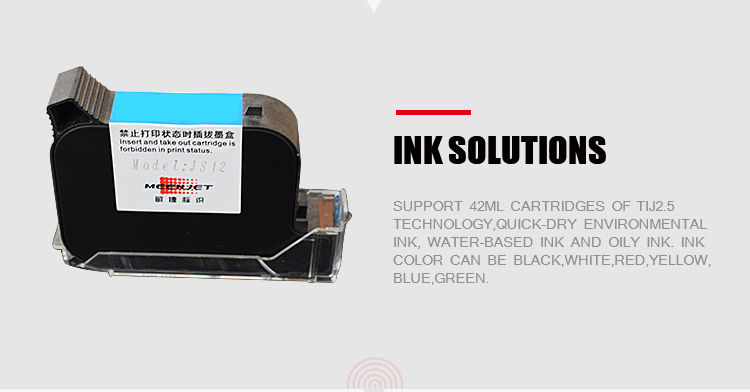

| Ink type | Quick-dry environmental ink, water-based ink and oily ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml(usually can print 800,000 characters) |

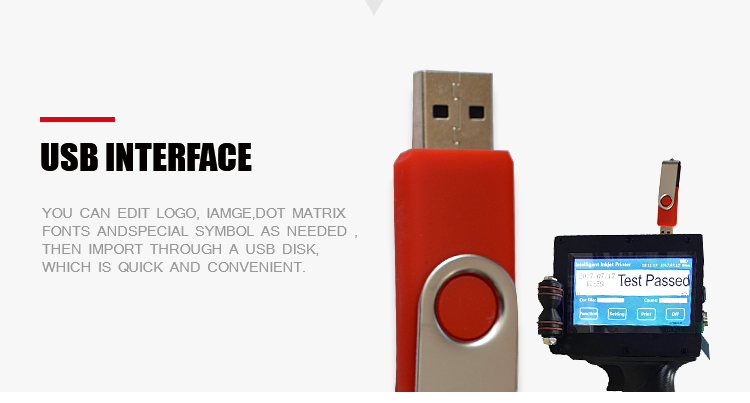

| External interface | USB, Photoelectric interface, can directly insert a USB disk to upload information |
| Voltage | DC16.8 lithium battery, print continuously more than 10 hours and 20 hours standby |
| Control panel | touch-screen (can connect wireless mouse, can also edit information through the computer) |
| Power consumption | the average power consumption is lower than 5W |
| Working environment | Temperature:0 - 38 degree; Humidity: 10% - 80% |
| Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. |
Main Advantage
1, International design, imported core components and consumables.
2, IP54 protection grade, steady performance under poor working condition.
3, 300DPI high definition.
4, Modularized ink cartridge and print-head.
5, 32-bit Linux operating system (5 piece of CPU chip)

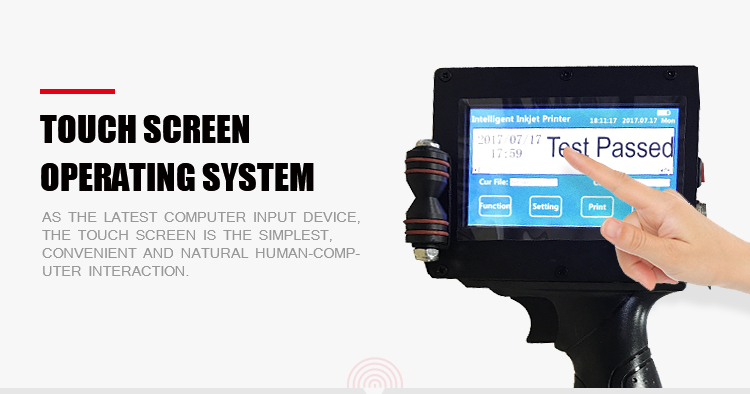

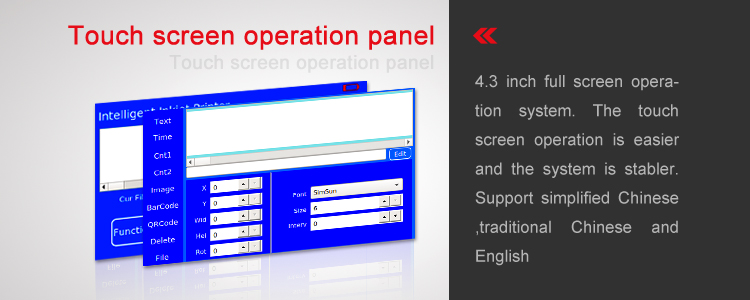

6, 4.3-inch touch screen operation system.
7, Upgrade system freely during lifetime.
8, Built-in graphics editor, editing LOGO easily.

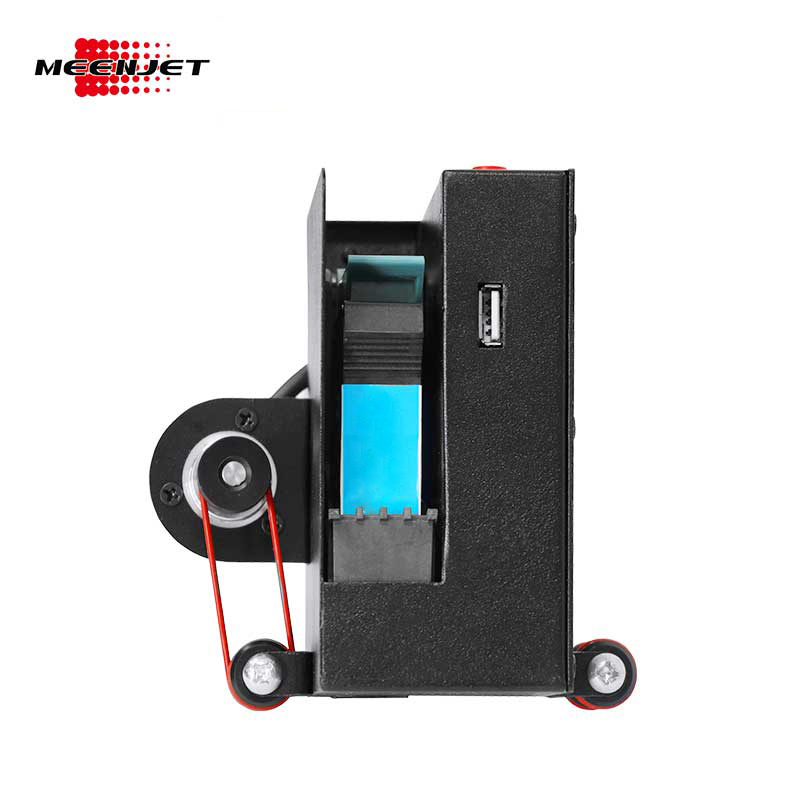

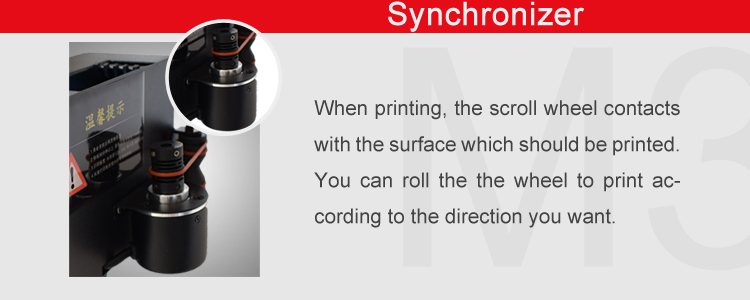

Detailed View

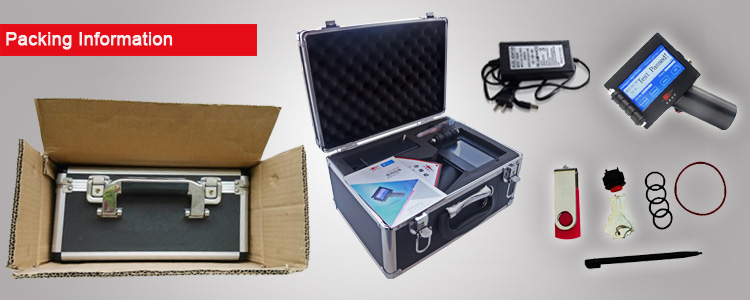

Detailed Packing
| Size(cm) | G.W(kg) | Remarks | |
| Outside | 35*28*20 | 3.5 | Cardboard box packing |

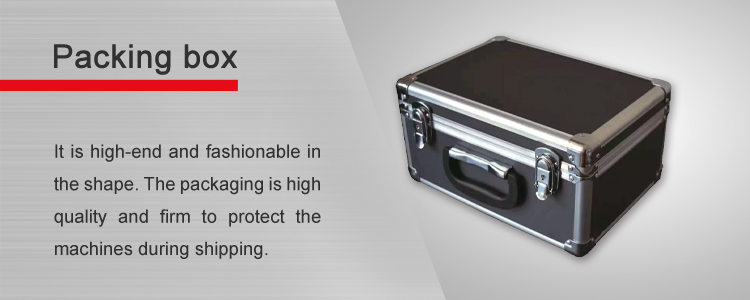

| Inside | 32*23*16 | 2.65 | Exclusive custom metal suitcase |
| Support customized packing | |||
| Single packing | Item | Pc/pcs | |
| M3S inkjet printer | 1 | Standard packing | |

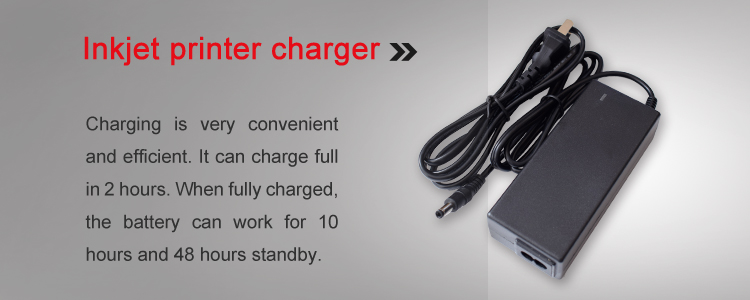

| Charger | 1 | Standard packing | |
| USB disk | 1 | Standard packing | |
| Touch pen | 1 | Standard packing | |
| Press Button | 1 | Standard packing | |
| Rubber rings | 8 | Standard packing | |
| Ink cartridge | 1 | Optional match (Extra charge) | |

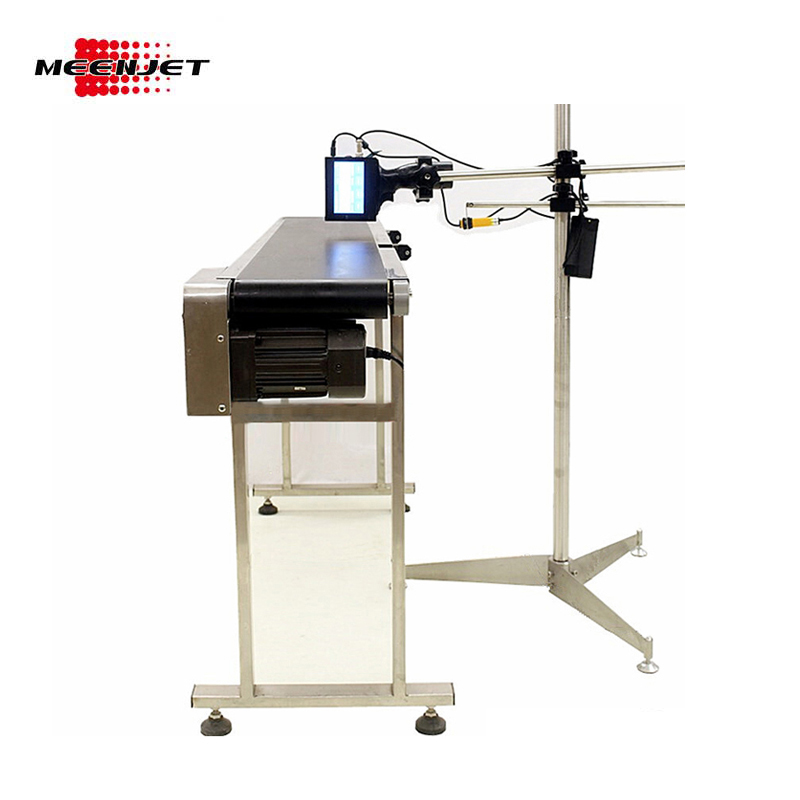

| Sensor bracket | 1 | For online printing (Extra charge) | |
| Conveyor belt | 1 | For online printing (Extra charge) | |
Application View
