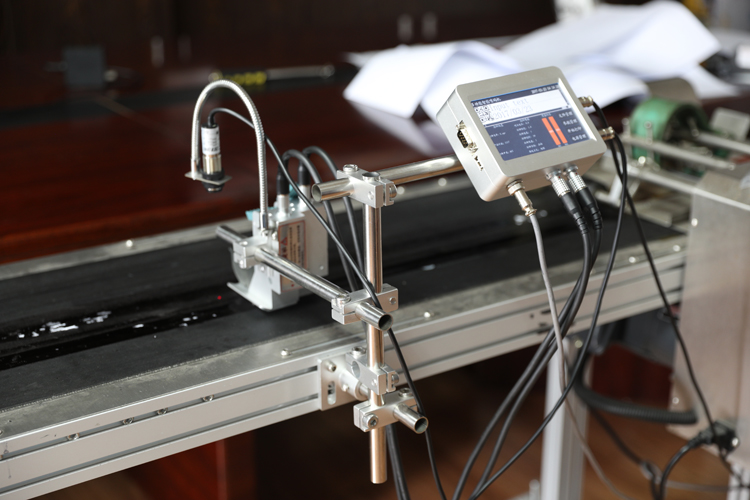

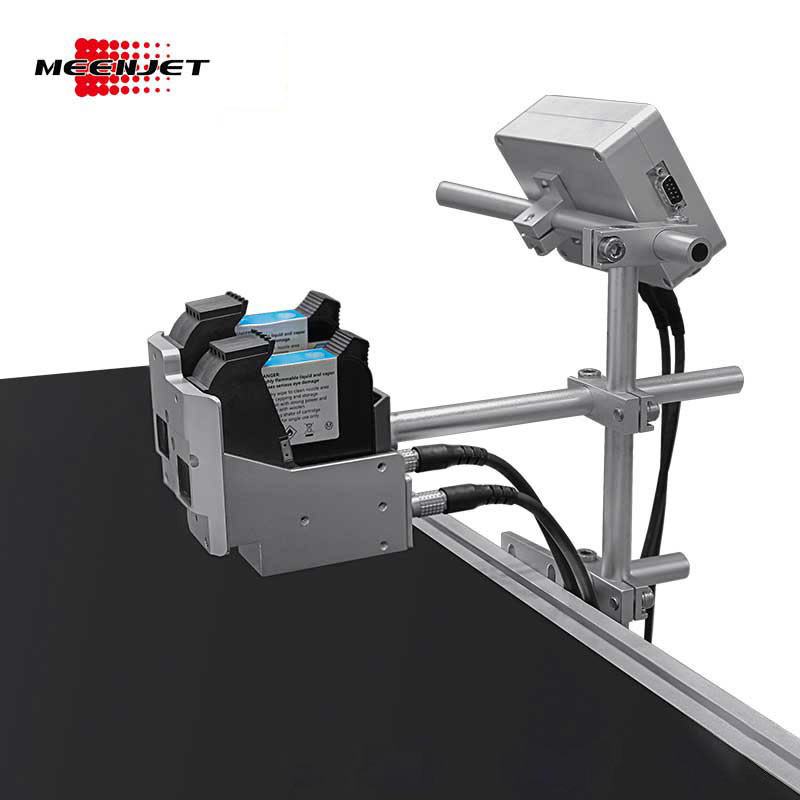

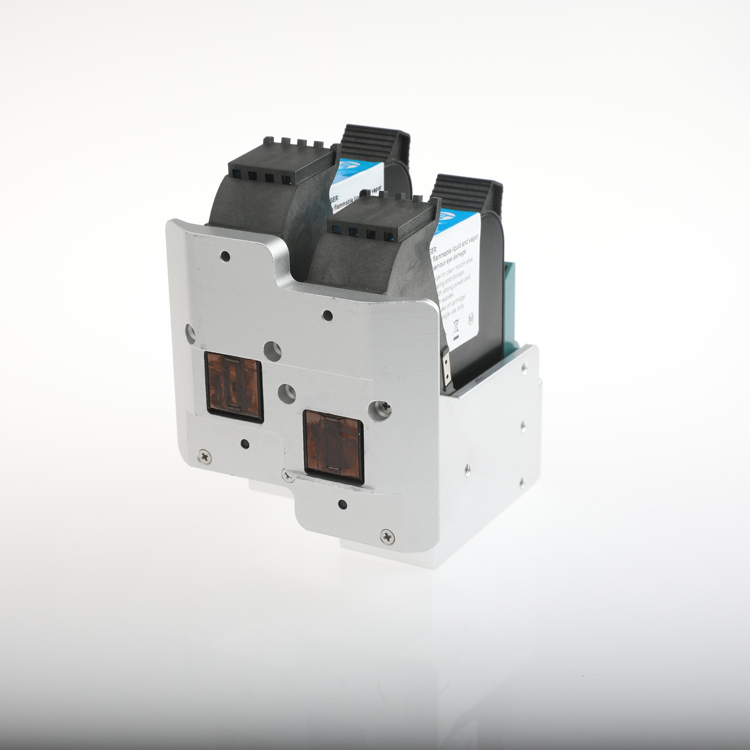

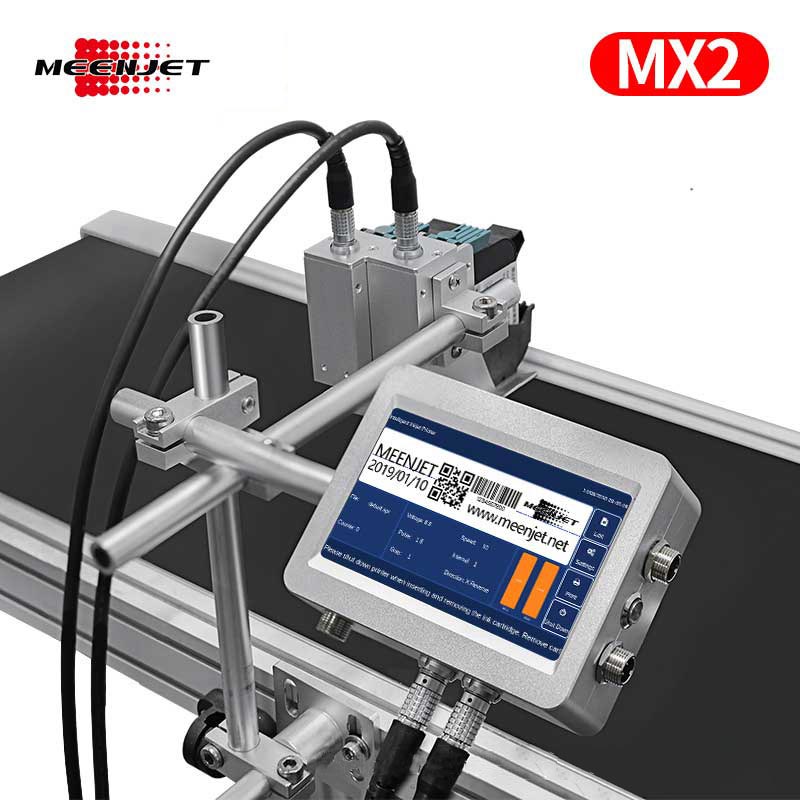

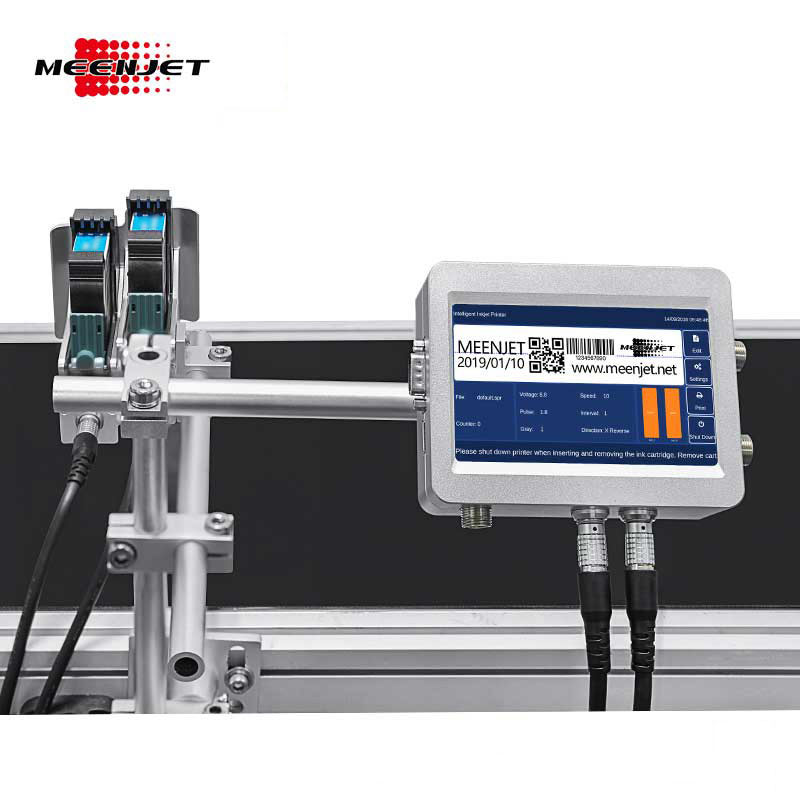

MX2 is double print head auto printing machine on production line. The print head can be combined together or separated. If two combined print head, the print height can reach 25.4mm.
It is usually used on carton box, plastic bags for food these manufacturers.

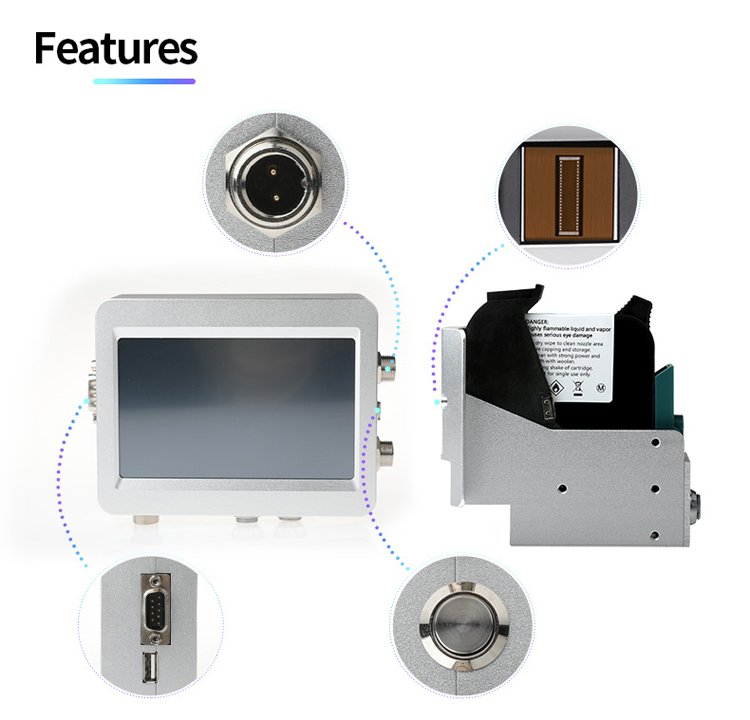

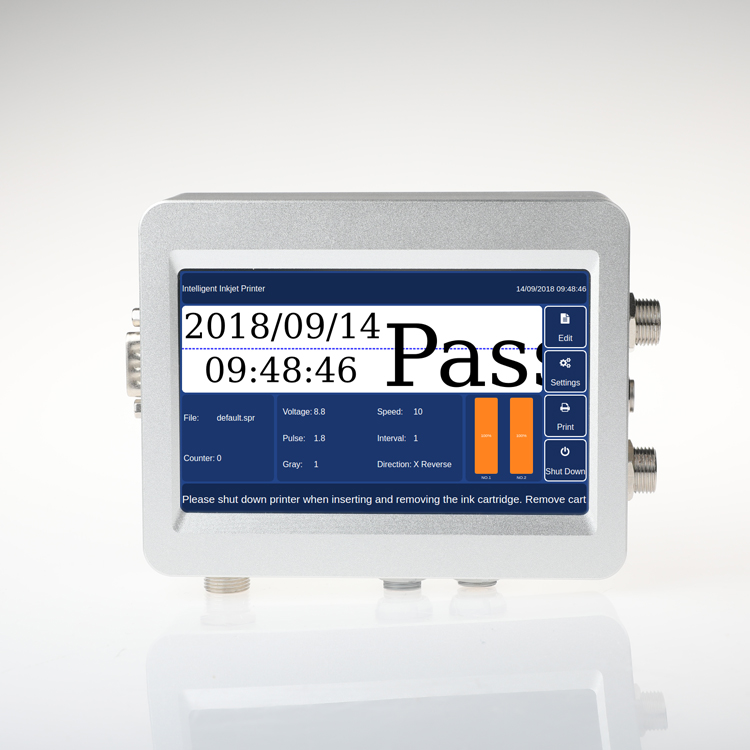

MX2 Automatically Inkjet Printing System Double Print Head is based HP TIJ 2.5 technology. The two print heads are controlled by one panel, and they can be combined together or separated. This machine has 600DPI print resolution. The machine has a 5" screen, support wifi online updated system. The inkjet engine is HP original, so much more stabe print result and saving a lof of ink.
Product parameter
| Model | MX2 |
| Nozzl | TIJ 2.5 Thermal foaming nozz |
| Operating system | Linux |
| CPU | Quad core 1.4Hz |
| DPI | 600 maximum |
| Screen size | 5 inch |
| Language | English, Chinese, Turkish, Arabic, Korean, Italian |
| Shape feature | Aluminum alloy |
| Dimension | Controller: 130*100*42mm, Print head: 90*110*107mm |
| Printing height | 12.7mm*2 |
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
| Printing content | Text, time, batch number, serial number, logo, QR code, barcode |
| Application | Board, carton, stone, pipe, cable, metal, plastic, electronics, automotive parts |
| Printing length | 2000characters for each message, no limitation on length |
| Printing speed | 70m/min |
| Ink type | Quick-dry environmental ink, water-based ink and oily ink |
| Ink color | black, white, red, blue, yellow, green, invisible |
| Ink volume | 42ml(usually can print 800,000 characters) |

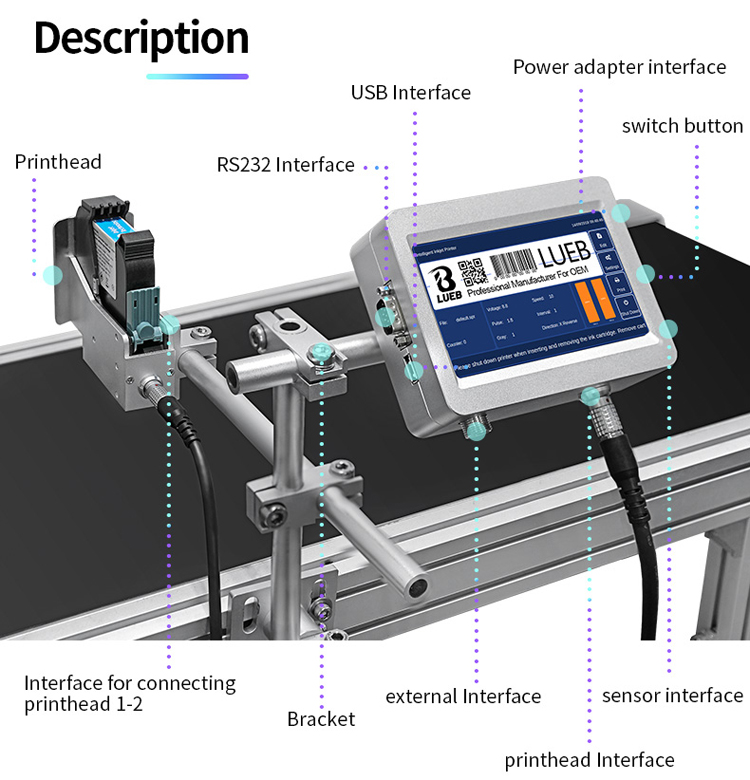

| Interface | USB, Photoelectric interface,RS232 |
| Voltage | 220V±20% AC input, 30V/10A DC output |
| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) |
| Working condition | Temperature:0 - 45 degree; Humidity: 10% - 80% |

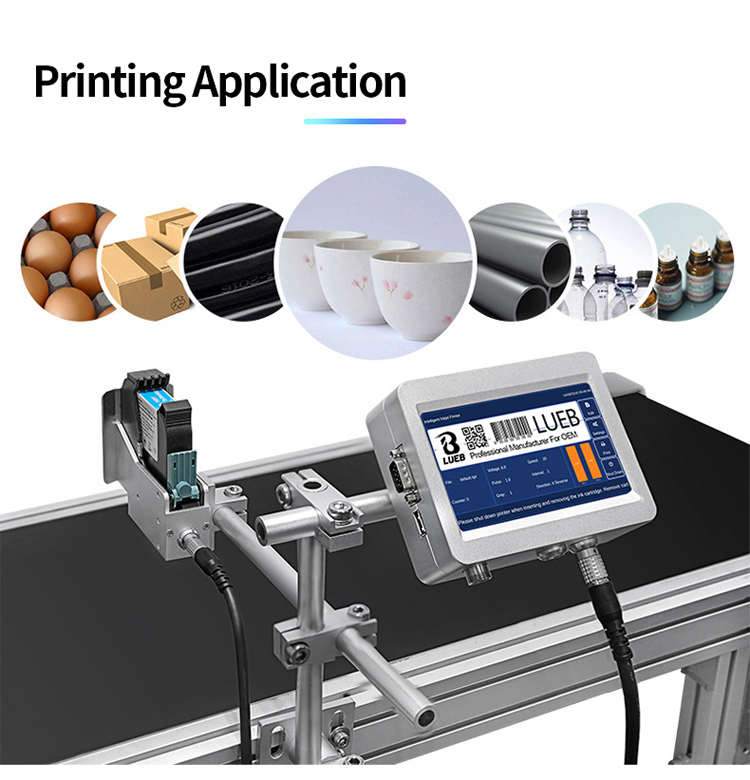

Product Application

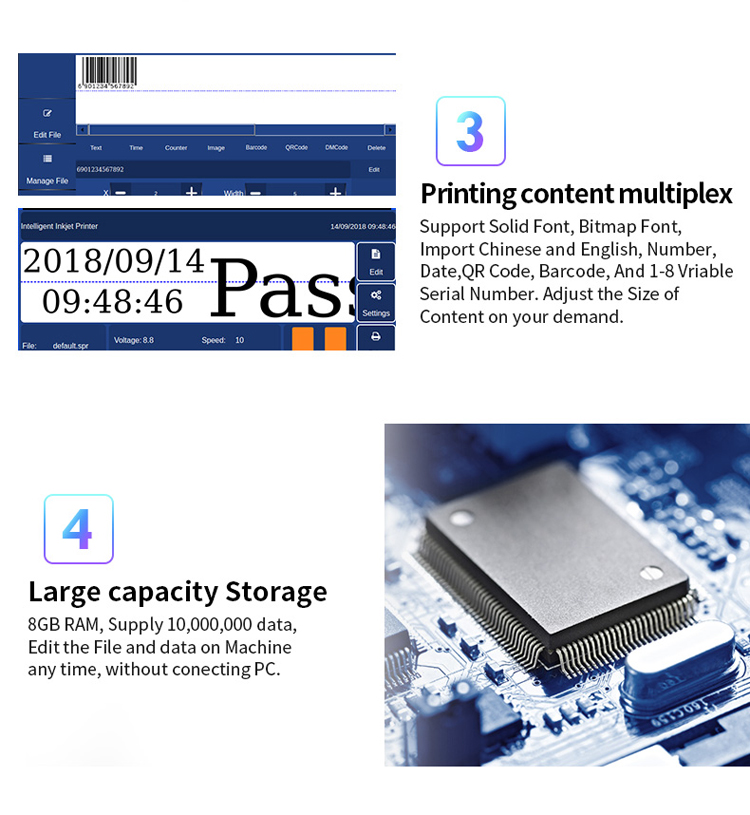

The MX2 online inkjet printer can pint Production date, expiry date with several formats for option, barcode style: UPCA，UPCE，EAN13，EAN8，INT25，CODE39，CODE128，EAN128， PDF417，DATAMATRIX, QR code.

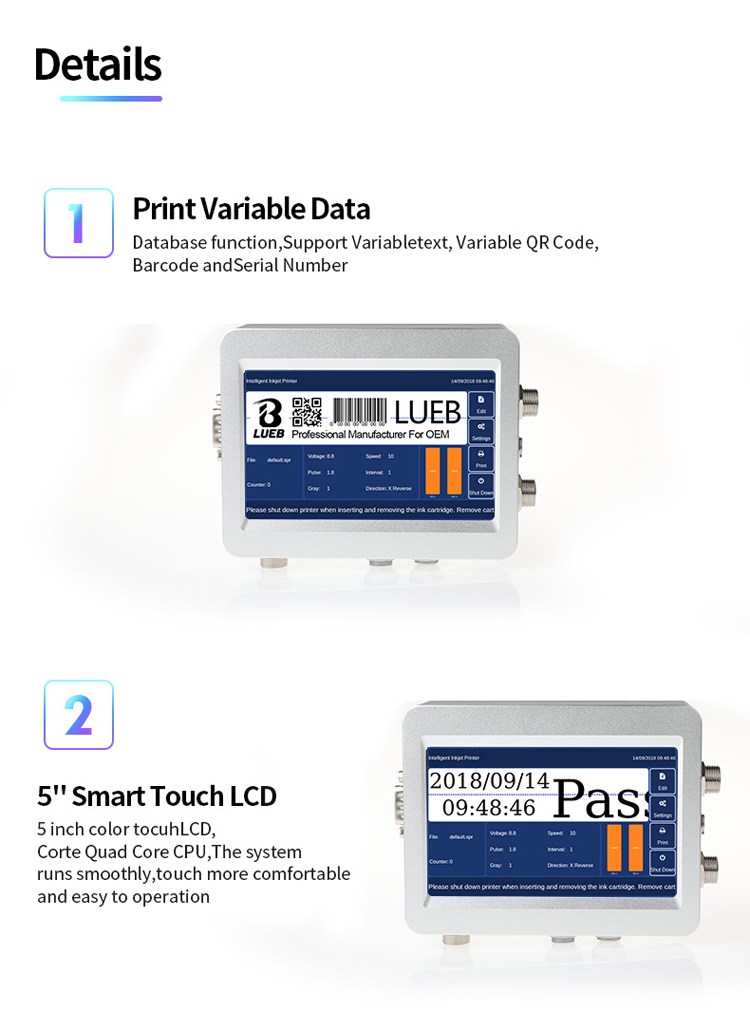

It has variable data base function, the message can uploaded by USB or RS232 interface.

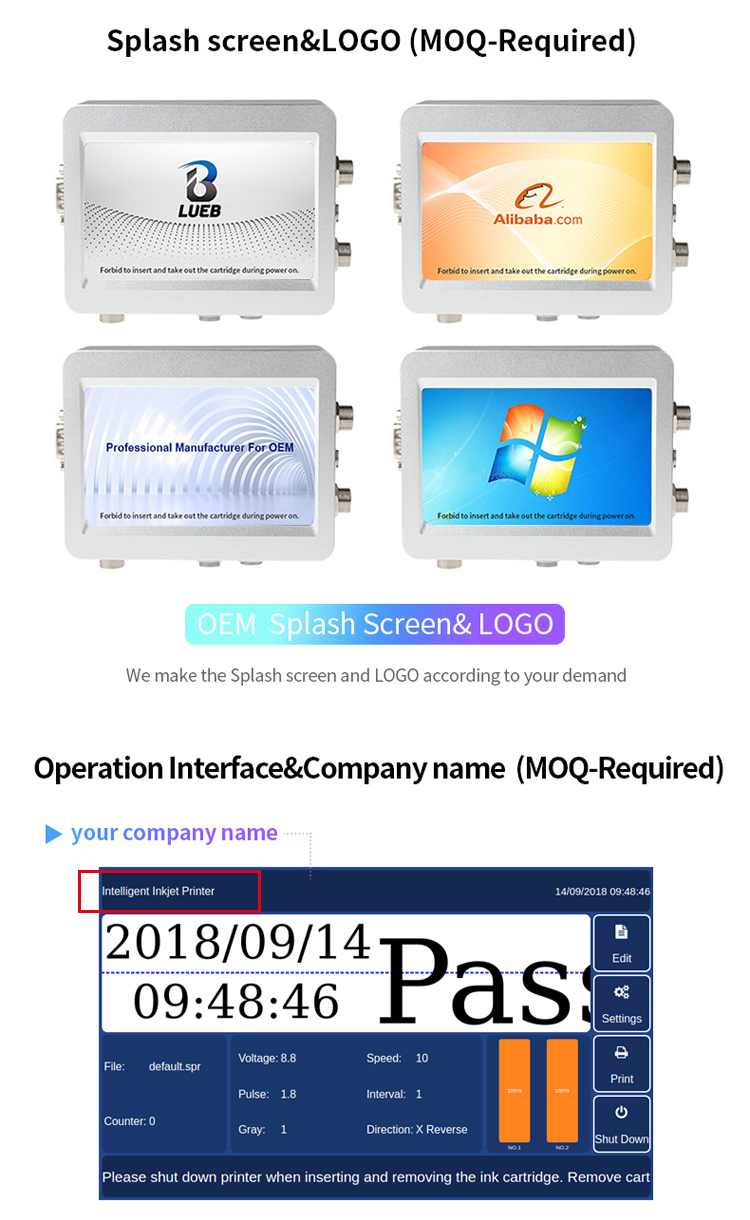

OEM Service
We support OEM service for different kinds of distributors, so that you can make your own kinds of inkjet printers to supplied to your market, welcome inquiry to us!

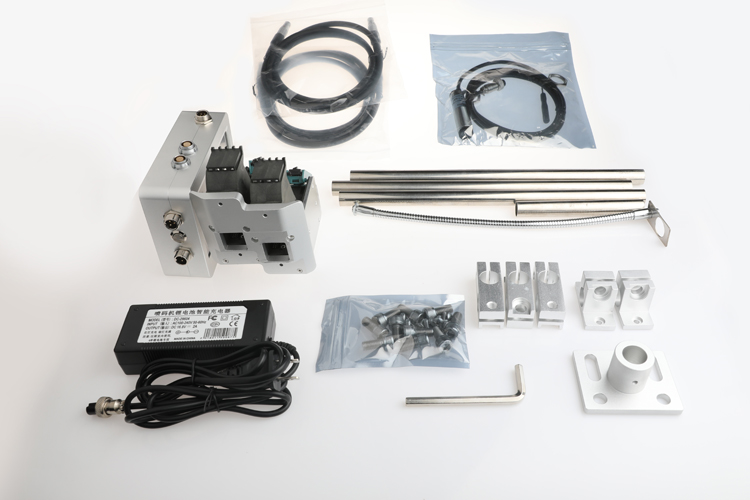

Packing List
Standard side printing, down printing bracket and anti-shock bracket, users can install according to their needs.
